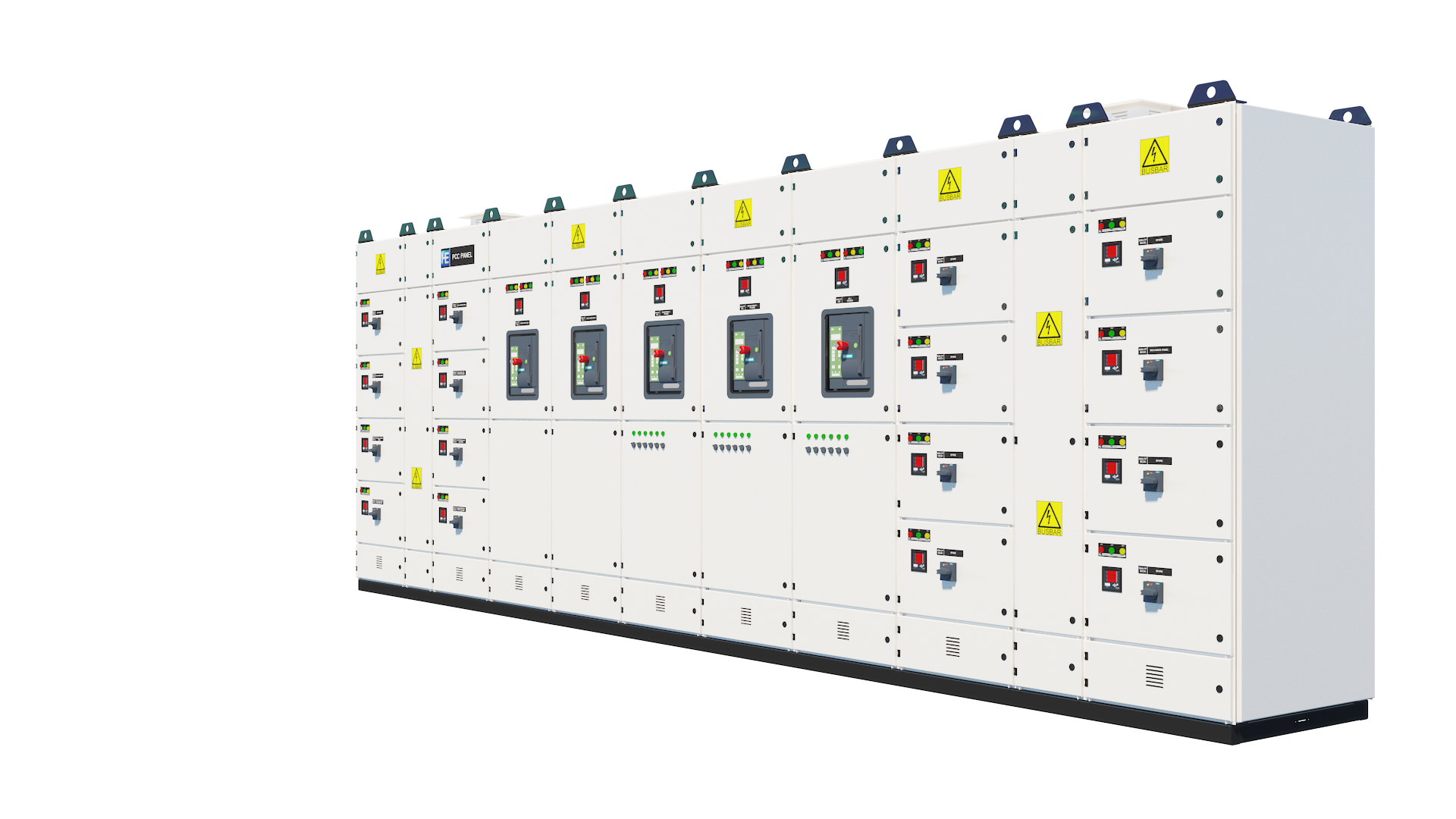

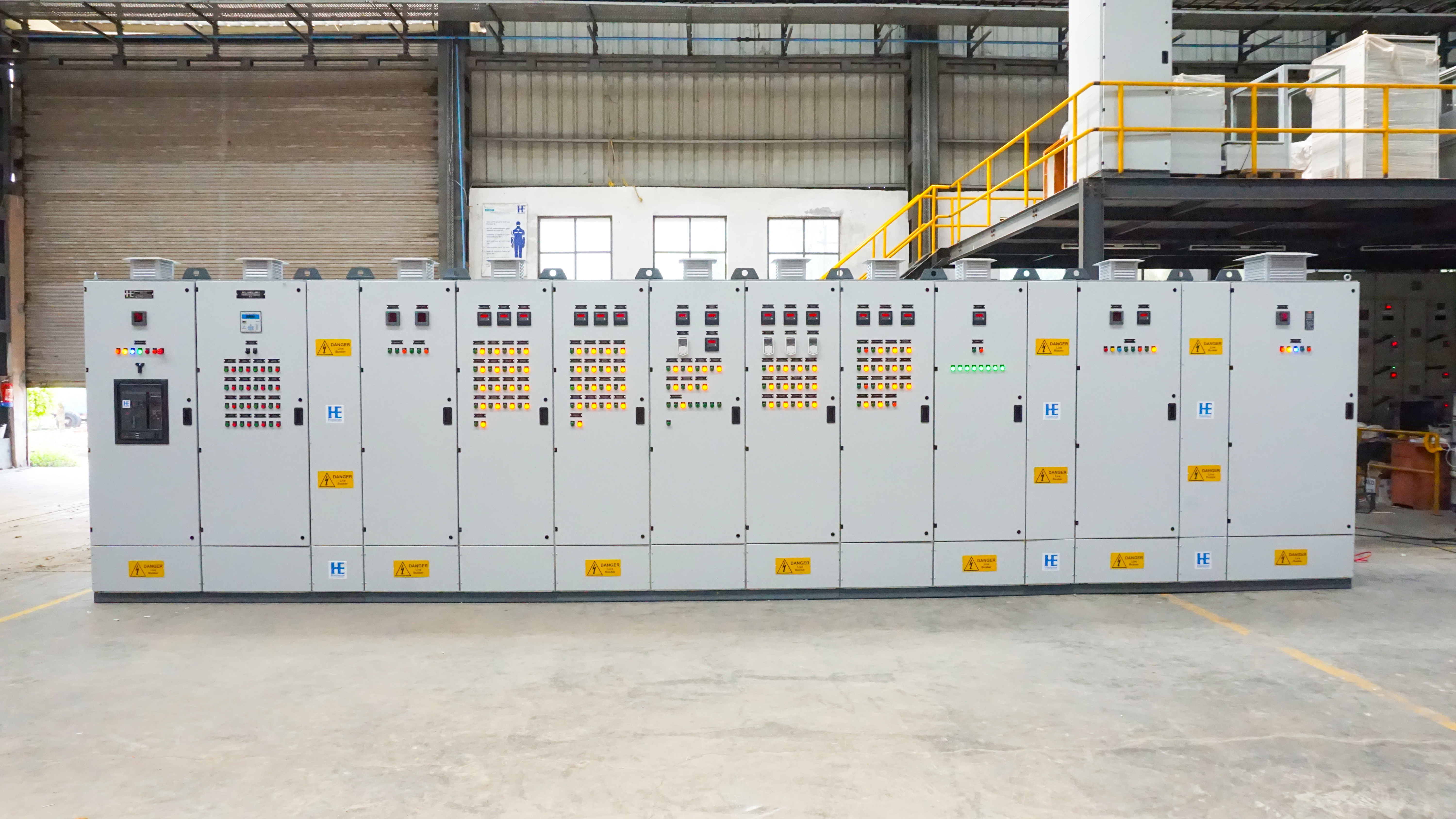

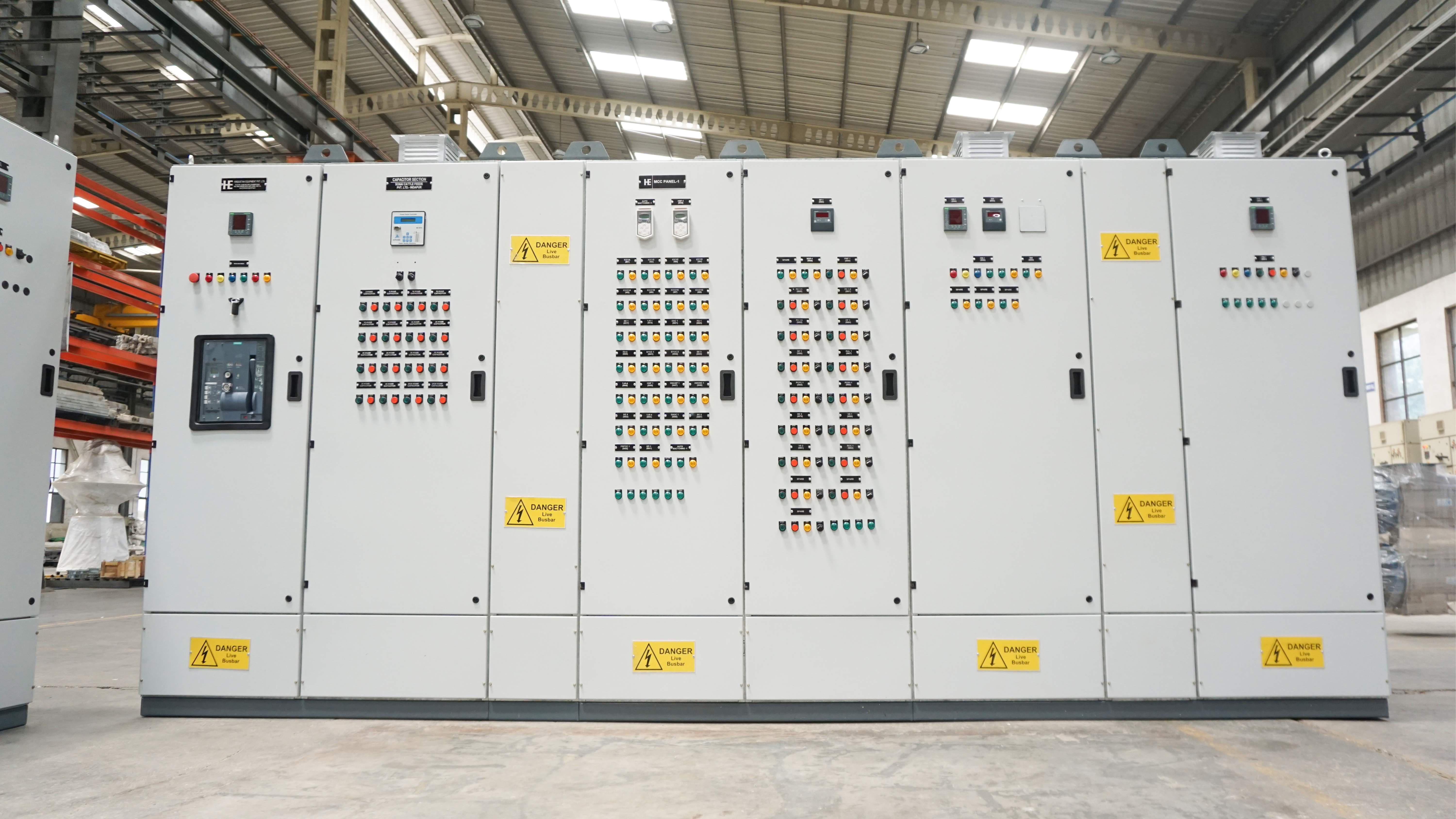

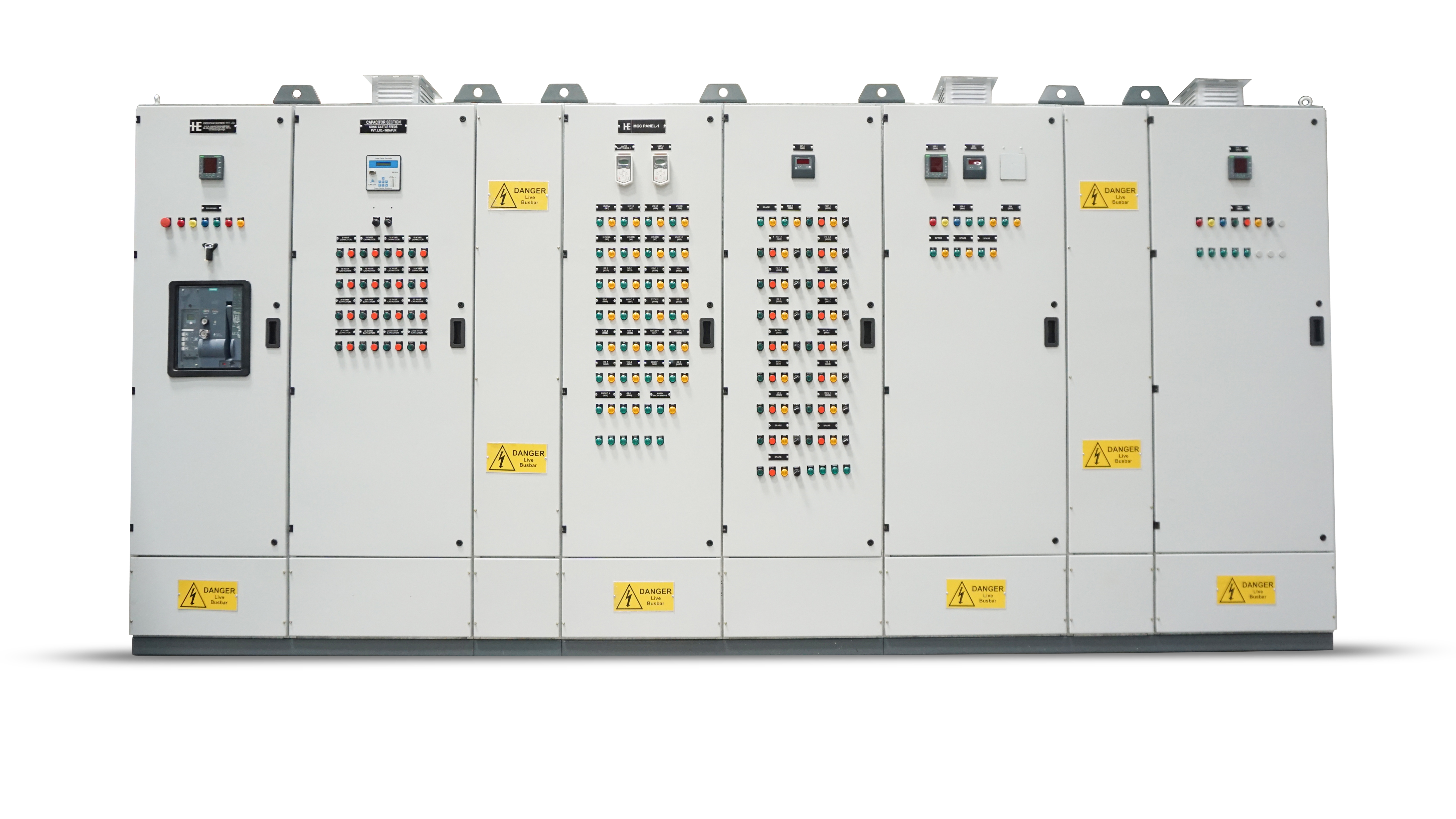

Electrical Panels — PCC, MCC & APFC
HEPL Electrical Panels are designed to satisfy the most rigorous demands of modern industries. The design conforms to national and international switchgear standards (IS 61439) and is flexible enough to accommodate varying customer requirements, with high-precision bus bars, cable trays and accessories. Its unique features make it the most preferred modular panel of Indian industry.
Market Segments
- Food and Beverage
- Automotive
- Chemical
- Commercial & Industrial Construction
- Mining, Metals and Minerals
- Oil & Gas (upstream, midstream, downstream)
- Pulp and Paper
- Utility
- Water Treatment & Wastewater
Design Highlights
- Modular design — length can be extended by adding feeders on either side
- Fully drive-controlled IMCC Panels for specific process requirements (Grain Milling, Milk Processing, etc.)
- Proper wiring and ferruling for quick fault response and easy wire tracking
- Compact Siemens and other switchgear-brand solutions for space and cost savings
- Back-side cable termination for proper dressing of power and control cables
- Heating sleeves provided for safety
Features
- Moulded-case and air circuit breakers in mains
- Bimetallic and solid-state overloads
- Adjustable frequency drives (6-pulse) up to 400 HP VT
- Panel boards, transformers and ATS
- Metering, SPDs and feeder breakers
- MPCBs, Contactors, MCBs, MCCBs
- 850–1000 mm depth enclosures
- Front-and-rear common bus design
- 120 V / 240 V / 480 V coil options as well as 24 V DC
- Drawout type
Technical Data
- Rated Service Voltage — 415 V
- Rated Frequency — 50 Hz
- Rated Insulation Voltage — 660 V
- Rated Current (max) — 6300 A
- Busbar Fault Level — 50 kA (1 sec withstand) / 105 kA (peak)
- Busbar System — TP-E or TPN-E
- Degree of Protection — IP 44
